Maytag MEW9630FZ Installation Instructions

Rating 5.0 (votes: 1)

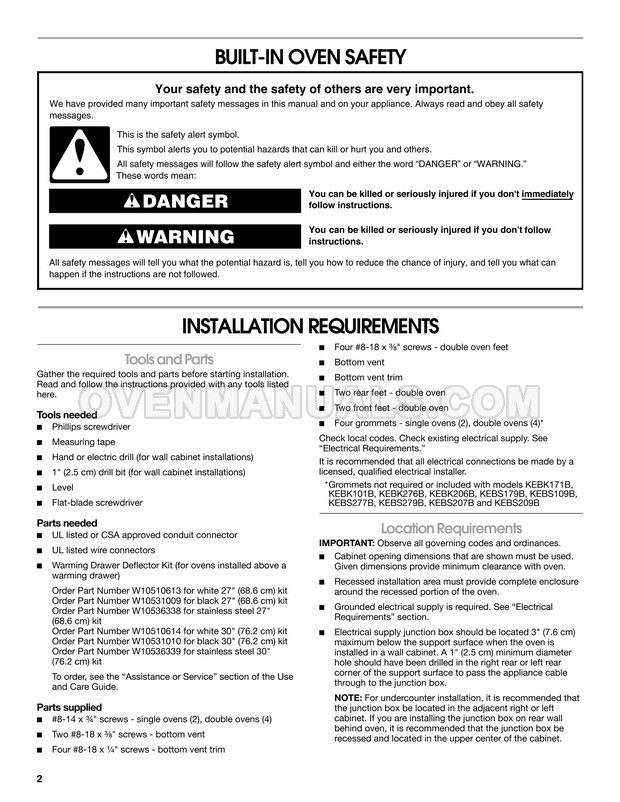

MEW9630FZ Installation Instructions Page #2

MEW9630FZ Installation Instructions Page #3

MEW9630FZ Installation Instructions Page #4

MEW9630FZ Installation Instructions Page #5

MEW9630FZ Installation Instructions Page #6

MEW9630FZ Installation Instructions Page #7

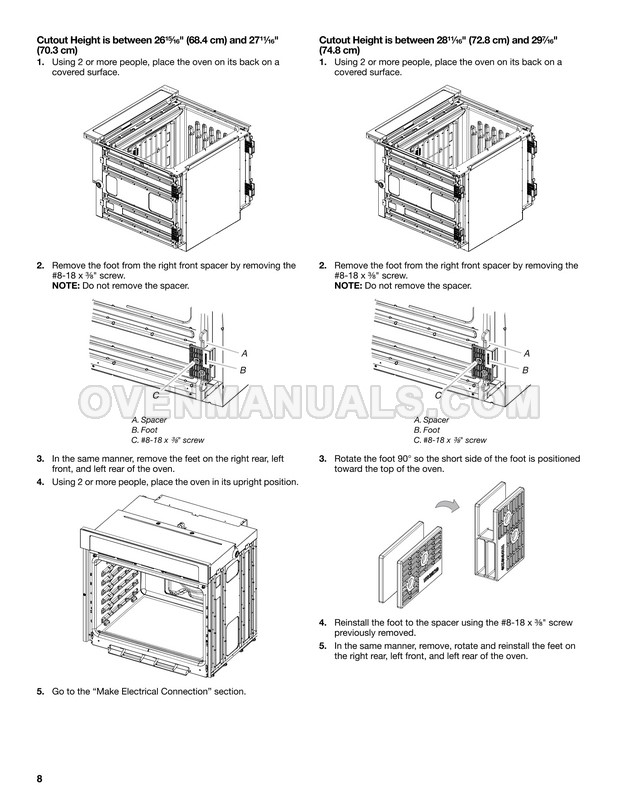

MEW9630FZ Installation Instructions Page #8

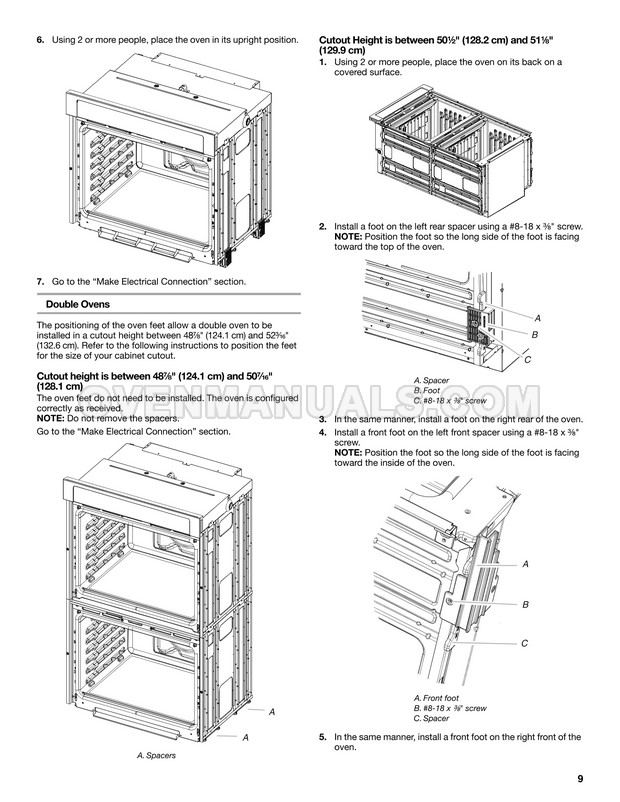

MEW9630FZ Installation Instructions Page #9

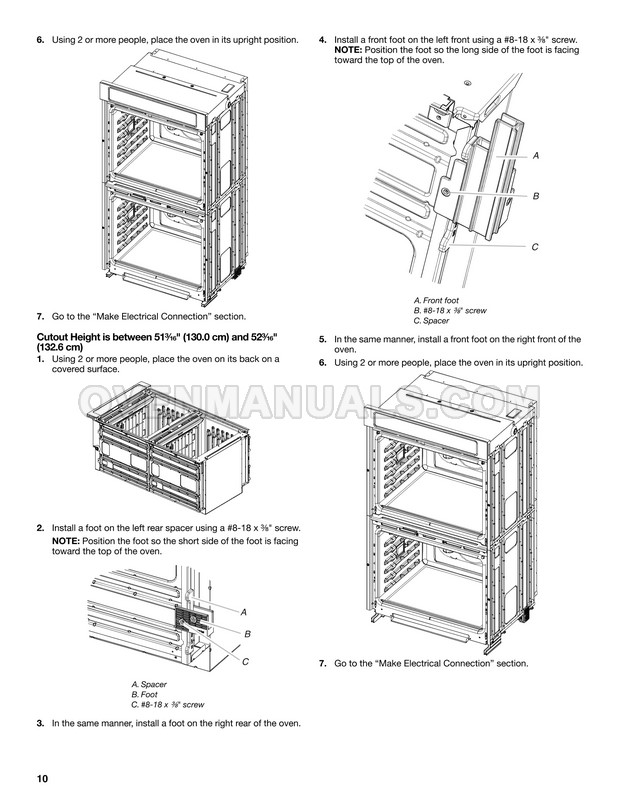

MEW9630FZ Installation Instructions Page #10

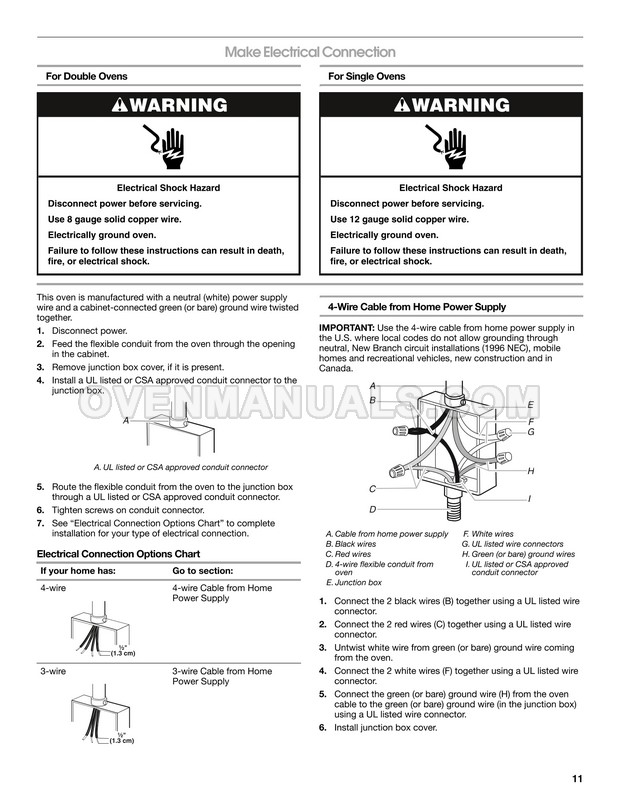

MEW9630FZ Installation Instructions Page #11

MEW9630FZ Installation Instructions Page #12

MEW9630FZ Installation Instructions Page #13

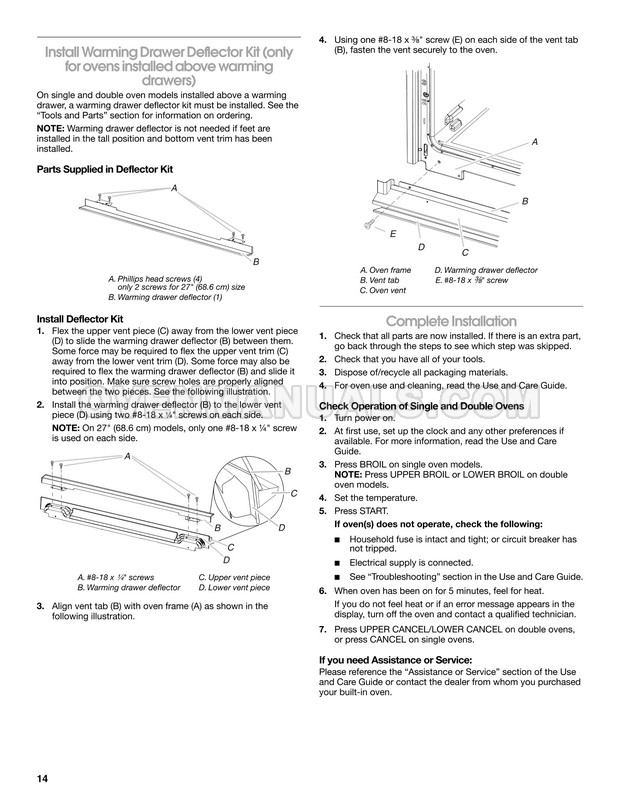

MEW9630FZ Installation Instructions Page #14

MEW9630FZ Installation Instructions Page #15

MEW9630FZ Installation Instructions Page #16

Description

Read the 15 page installation instructions before using the 30" 10.0 cu. ft. electric double convection wall oven. This will avoid breakdowns, non-warranty repairs and extend the life of the Maytag MEW9630FZ.
